In an industrial process, ‘mixing’ can mean very different things. Sometimes it is enough to homogenise temperature or concentration. But when the goal is to transform the product’s microstructure, the key question is not ‘how much power do I have’, but where and how the energy is applied.
In processes where final quality depends on the product’s microstructure – lump-free powder dispersion, stable emulsions with controlled droplet size – a conventional tank agitator is often not enough: energy is applied unevenly, the result depends on variables that are difficult to control, and batch-to-batch repeatability is compromised.
The real risk is not just a lower-quality product – it is reworking batches, increasing production costs, and losing confidence in the process. We elaborate on this point, one in which your industry and others will recognise themselves.
When mixing is not enough: the role of high shear
High shear is the ability to generate very intense forces in a small zone, with high interface renewal and a steep velocity gradient. In practice, this enables:
• Rapid powder wetting, preventing surface films and lumps
• Efficient deagglomeration and droplet size reduction in emulsions
• Narrowing droplet size distribution and improving emulsion stability
• Converting a tank-dependent process into a recipe-driven one: flow rate, rpm, passes
High shear is not a tool you reach for arbitrarily – it is used when the process demands a specific microstructural outcome, not simply to move volume.
As manufacturers, we know that every product and every industry requires a specific solution. When the challenge is high shear, the ALVAK inline mixer delivers the process control that a tank agitator alone cannot guarantee.
Why ALVAK for dispersion
Most dispersion failures are created in the very first moment of addition: the powder hydrates on the outside, forms a film, and traps dry solid inside. In a tank, even with good circulation, if addition occurs in a zone with insufficient energy, the defect is created at the start and is very difficult to eliminate afterwards.
When the powder is introduced directly into the high-shear zone – by induction or injection point – wetting occurs much more rapidly and uniformly, regardless of the tank level, temperature, or viscosity at that moment.
Furthermore, the inline mixer allows working by ‘process dose’:
✔ Defined recirculation flow rate
✔ Controlled head RPM
✔ Reproducible total time or number of passes
This translates into batch-to-batch repeatability and ease of scale-up, without having to ‘increase tank RPM’ blindly.
High shear for emulsions: texture control
In emulsions, stability improves when droplet size is reduced and a ‘tail’ of large droplets is avoided. The ALVAK’s rotor-stator is highly effective at droplet breakup and allows progressive refinement through passes: a primary emulsion can be improved by recirculation until the target is reached.
Texture —body, gloss, mouthfeel— depends on microstructure, and microstructure depends on:
• The order of addition (dispersed phase vs. continuous phase)
• Temperature (especially when fats are involved)
• Type and dosage of emulsifier
• Effective shear applied
These parameters become more controllable and repeatable than in a tank where the result may depend on localised zones and variable conditions.

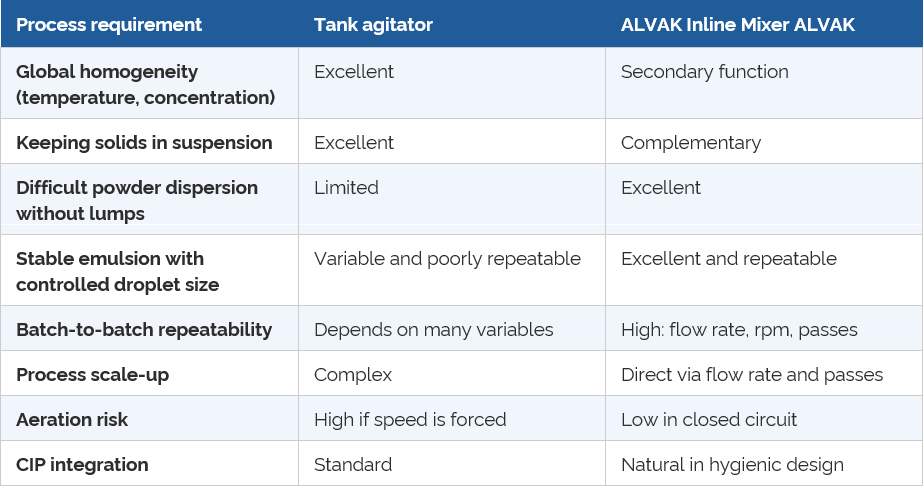

The right tool for each need: tank agitator or inline mixer
The tank agitator excels at global homogeneity, preventing stratification, keeping solids in suspension for hours, or controlling low-shear process time. Our ALVAK inline mixer does not replace the agitator; it complements it when the primary function is to disperse or emulsify with fine quality.
Combination: gentle agitation + high shear
In most plants, the most robust mixing architecture is:
• Tank agitation (gentle, for homogeneity and volume stability)
• ALVAK: high-shear inline mixing (to create the microstructure and eliminate lumps or refine the droplet)
This architecture reduces the risk of over-shearing the entire volume, aerating, breaking the structure in sensitive products, and depending on the ‘addition point’.
The tank maintains; the ALVAK transforms.
Operational benefits of the ALVAK inline mixer
✔ Accessibility: skid- or pipe-mounted, easy to inspect and maintain
✔ Modularity: the same ALVAK unit can serve multiple tanks.
✔ Direct scale-up: via flow rate and number of passes, with no hidden variables
✔ Natural CIP integration, especially in hygienic designs for food, cosmetics, or pharmaceutical industries
For the ALVAK to deliver its full advantages, the following must be considered:
• Clear process objective: absence of lumps, fineness, stable viscosity, droplet size, texture.
• Addition design: the best high-shear equipment in the world cannot correct a powder feed that enters with air or at irregular intervals.
• Avoid over-shearing: more shear is not always better; it can heat, aerate, or degrade the structure.
• Loop hydraulics: flow rate, return line, injection point location, and recirculation strategy matter as much as the mixing head itself. For this purpose, Piton pumps and Viscovak technology.
• Simple validation: sieve, visual inspection, resting stability, viscosity at defined shear… help to close the recipe.
Conclusions:
When the goal is quality dispersion or emulsion, an inline mixing unit like the ALVAK delivers a more robust, faster, and repeatable process than relying solely on a tank agitator.
The agitator remains indispensable for global homogeneity, but the most powerful approach for fine quality is always the hybrid: gentle tank agitation + high-shear inline mixing.
Because mastering the process is mastering the product.
Are you agitating when what you want is to disperse? You want lump-free dispersion or a stable emulsion with controlled droplet size – and that is when you realise the tank agitator is not enough.
The solution is not to agitate harder, but to apply energy where it matters.

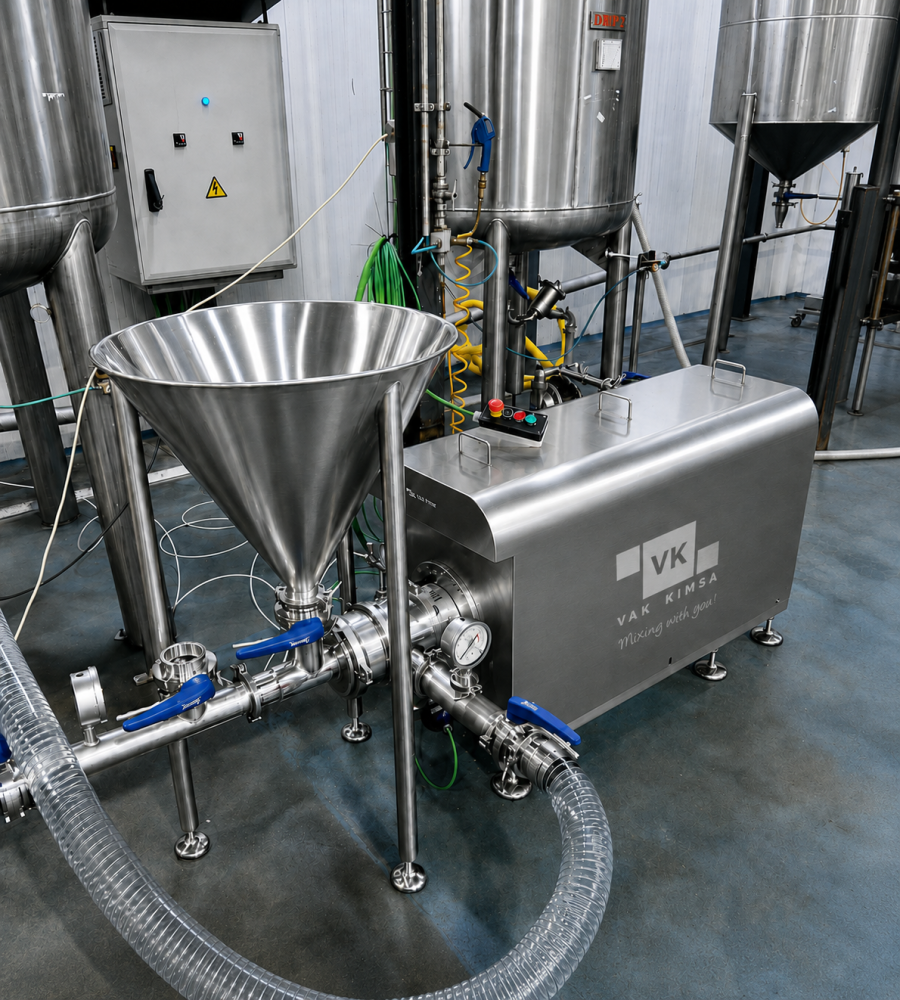

A high-shear inline mixer, such as ALVAK, changes everything:
- Lump-free dispersion from the very first instant
- Stable, batch-to-batch repeatable emulsions
- Process defined by flow rate and passes, not by intuition
- Less rework, more control
