Sealing in industrial agitation

Seals

A guaranteed sealing system is crucial. Choose VK: we offer a wide variety of sealing options for agitators and mixing.

Sealing in industrial agitation. The correct choice of sealing prevents breakdowns and unnecessary downtime.

The best selection for your agitation process

VAK KIMSA offers a wide range of options to cover all sealing needs in the agitation and mixing process: lip seal, stuffing box, single mechanical seal, double, dry-running, lubricated.

Sealing Equipment for Industrial Agitation

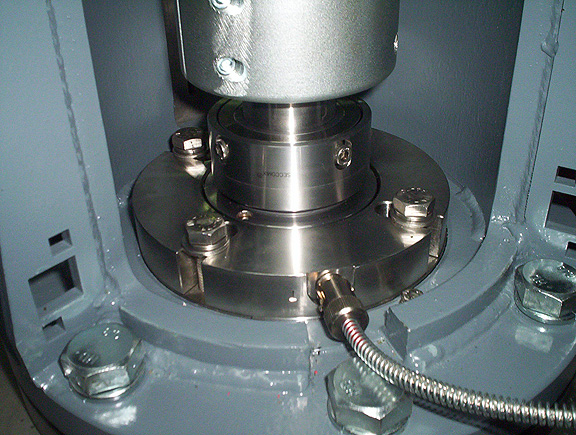

A side extraction system for the mechanical seal facilitates maintenance.

* A lateral extraction system for the mechanical seal facilitates maintenance.

Optimized Sealing Systems

Quick disassembly of the mechanical seal

Option that facilitates maintenance on large agitators.
No need to remove the agitator from the reactor.
You don't have to go into the warehouse.
No need to take down the lance.
Significant time reduction in the change of closure.

Lip Seal


Lubricated	Preassure (bar)	0 ÷ 10
	Max. Temp. (ºC)	250
	Máx. Speed(m/s)	20
Dry	Preassure (bar)	0 ÷ 6
	Max. Temp. (ºC)	130
	Máx. Speed(m/s)	10

Stuffing Box


Lubricated	Preassure (bar)	0 ÷ 10
	Max. Temp. (ºC)	250
	Máx. Speed(m/s)	20
Dry	Preassure (bar)	0 ÷ 6
	Max. Temp. (ºC)	130
	Máx. Speed(m/s)	10

Sealing Equipment

Types of Mechanical Seals

Single or double, lubricated or dry-running, balanced or unbalanced, our systems guarantee the sealing your process requires..

Single Mechanical
seal unbalanced


		+ Stuffing Box
Lubricated	Preassure (bar)	-1 ÷ 10	-1 ÷ 10
	Max. Temp. (ºC)	200	200
	Máx. Speed(m/s)	10	10

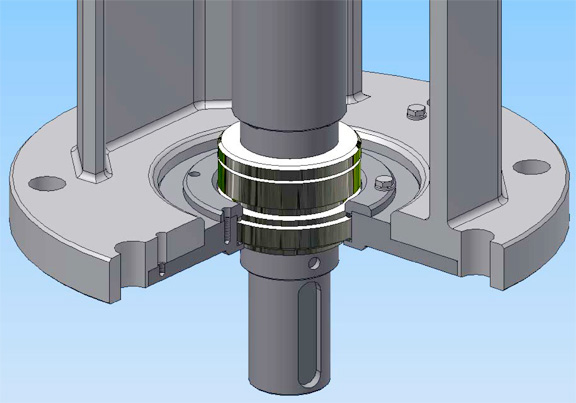

DRY SINGLE
MECHANICAL SEAL

* Sistema de extracción lateral del cierre mecánico, facilitando el mantenimiento

Single Mechanical seal balanced

Single Mechanical Seal Balanced

			Cartridge	Flushing Box
Lubricated	Preassure (bar)	Not available	-1 ÷ 25	-1 ÷ 15
	Max. Temp. (ºC)		250	200
	Máx. Speed(m/s)		12	10
Dry running	Preassure (bar)	-1 ÷ 4	-1 ÷ 6	Not available
	Max. temp. (ºC)	150	150
	Max. speed (m/s)	3	3

* Cierre mecánico doble lubricado

DOUBLE MECHANICAL
seal

DOUBLE MECHANICAL SEAL

		Cartridge	Housing
Lubricated	Pressure (bar)	-1 ÷ 25	-1 ÷ 75
	Max. Temp. (ºC)	250	250
	Max. Speed (m/s)	10	10
Dry running	Pressure (bar)	-1 ÷ 6	Not available
	Max. Temp. (ºC)	150
	Max. Speed (m/s)	3
