Industrial Helical Pumps
Piton® industrial helical pumps for transferring wastewater, oils, sludge, slurries, grease and viscous fluids with suspended solids.
Each pump is calculated according to the requirements of the application, providing optimal performance, service life and reliability.
Industrial Pumps for the Chemical Industry and Water Treatment
We design and manufacture robust, versatile industrial pumps adapted to demanding applications, capable of handling highly viscous products, suspended solids and adverse working conditions. Each pump is calculated according to the requirements of the application, providing optimum performance, service life and reliability.
Characteristics and Advantages of Piton® Industrial Pumps
- Pump bodies available in AISI 316L stainless steel and other types of alloys.
- Constant, pulse-free flow, proportional to speed.
- Stators made from high-resistance elastomers: NBR, Viton, EPDM.
- Seals adapted to the product: NBR, EPDM, silicone, Viton, Kalrez, among others.
- Sealing according to application: single mechanical seal, mechanical seal with flushing, double mechanical seal, gland packing.
- Standard connections: EN 1092-1 flange.
- Optional ATEX certification.
- Versions with 1 stage, 6 bar; 2 stages, 12 bar; and up to 4 stages on request, 24 bar.
- Suitable for products up to 100,000 cP and with suspended solids.
Sealing Solutions for Every Need
Depending on the product and the working environment, our pumps can be adapted with different types of mechanical seals:
- Single mechanical seal
- Single mechanical seal with flushing system.
- Double mechanical seal for critical applications.
- Other special configurations available on request.
Technical Representation and Key Components
Industrial pumps can include:
- Hoppers with feed screw, for loaded products or products that require assistance to reach the pumping elements, rotor/stator.
- Variable frequency drives (VFD), for speed and performance control.
- Mechanical seals adapted according to the field of application.
Ask our Pump Area Manager for advice! Let her know what kind ot pumping solution you are seeking for.
Choose confidence. Solve it with VK:
We want to be your mixing partner!
Available Series According to Application
Select the most suitable series for your production process:
INDUSTRIAL PUMP APPLICATIONS
Our industrial pumps are designed to move demanding, abrasive or highly viscous fluids, including products with suspended solids:
- Industrial wastewater.
- Mineral or vegetable oils.
- Olive paste.
- Glues and adhesives.
- Paper pulp.
- Alcohols and solvents.
- Liquid detergents.
- Sludge and slurry.
- Polyelectrolytes and flocculants.
- Industrial and animal fats.
- Slurry and other complex products.
Available Series of Piton® Industrial Pumps
Below are our main industrial pump series according to configuration and type of application.
MP and TA Series
Robust pumps with bearing support. Ideal for continuous operation and demanding conditions.
- Body in AISI 316L stainless steel and other alloys.
- Complete electric pump unit or bare shaft, according to requirements.
- Optional suction body with hopper and feed screw.
- Flow rates up to 100,000 L/h.

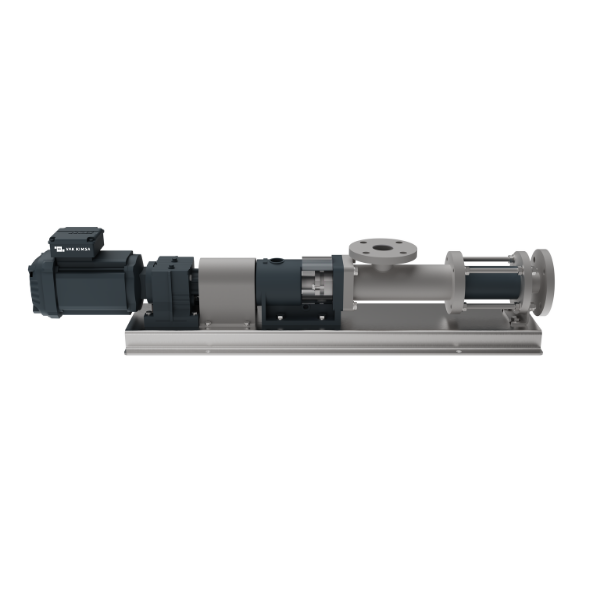

Piton® MP PUMP

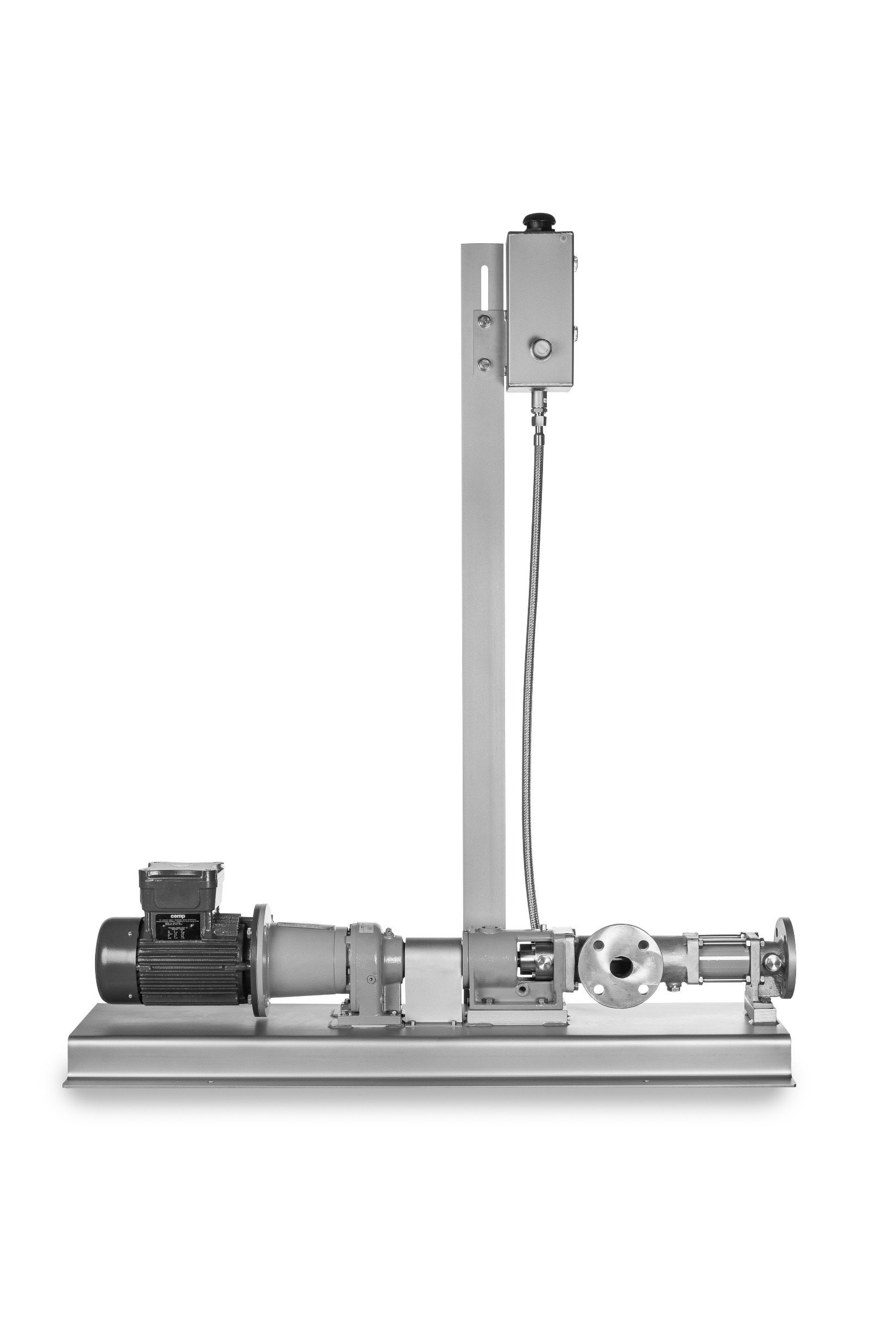

Piton® MP PUMP
WITH DOUBLE SEAL

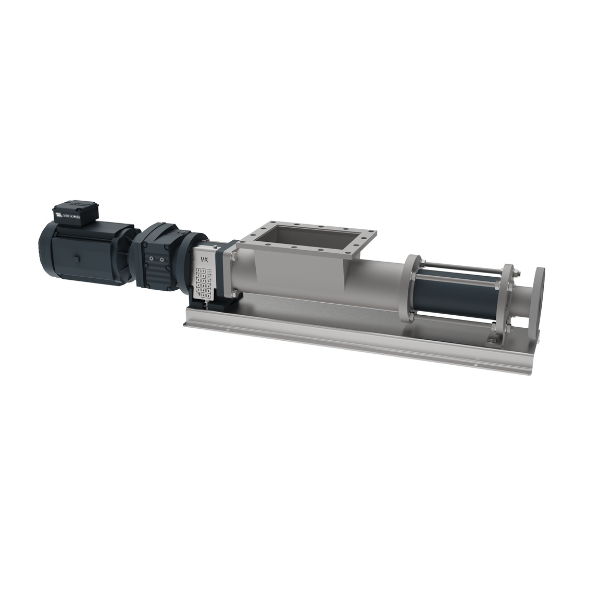

Piton® TA PUMP
IF Series
Monobloc pumps, more compact and cost-effective, directly assembled to the drive. Ideal when a functional, economical and easy-to-maintain unit is required.
- Compact design.
- Direct assembly to the drive.
- Optional suction body with hopper and feed screw.
- Flow rates up to 100,000 L/h.

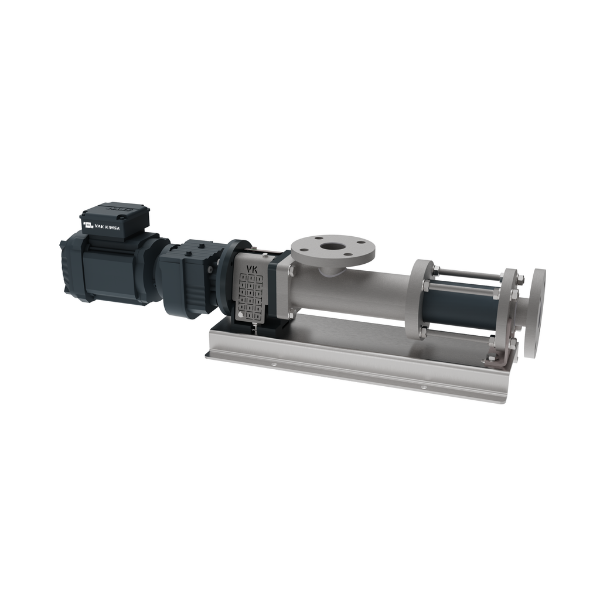

Piton®
IF PUMP

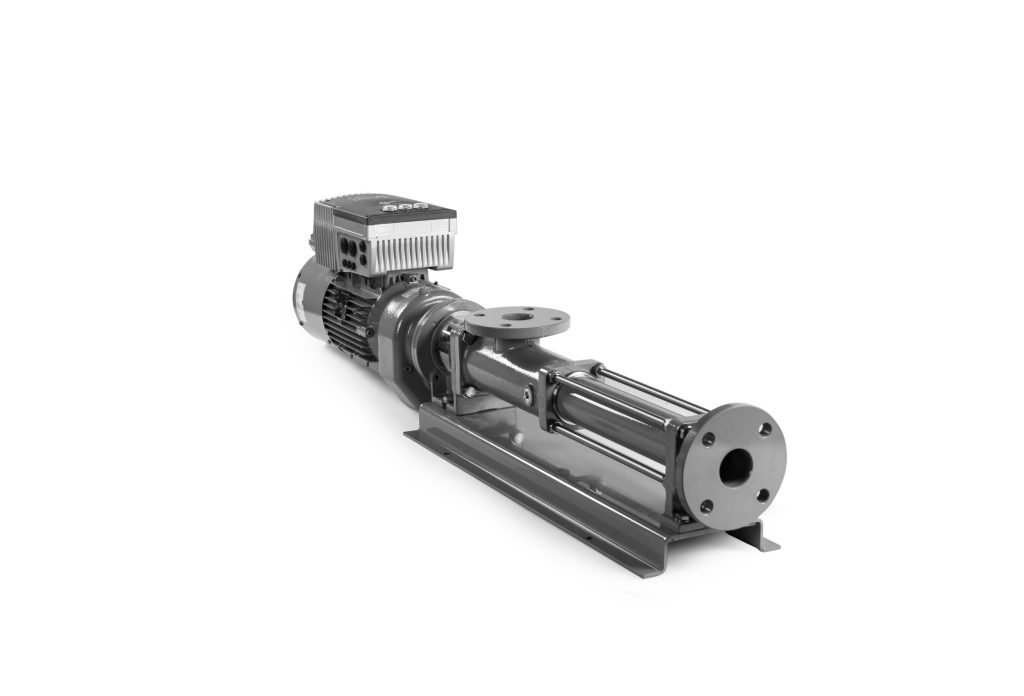

Piton® IF PUMP with VARIABLE FREQUENCY DRIVE
