In-line Mixers
At VAK KIMSA, we are pioneers in in-line mixing: development, application, and manufacturing.
What Is In-line Mixing?
An in-line mixer is a dynamic device installed in a pipeline and used to carry out mixing processes.
- Processes: mixing, dissolution, dispersion, emulsification, dilution.
- Mixer installed externally to the manufacturing tank.
- Solid-liquid, liquid-liquid, and gas-liquid mixing.
- The resulting mixture must be fluid, even if it is viscous.
- Solids may be powdered, crystalline, or granular.
- Batch or continuous production.

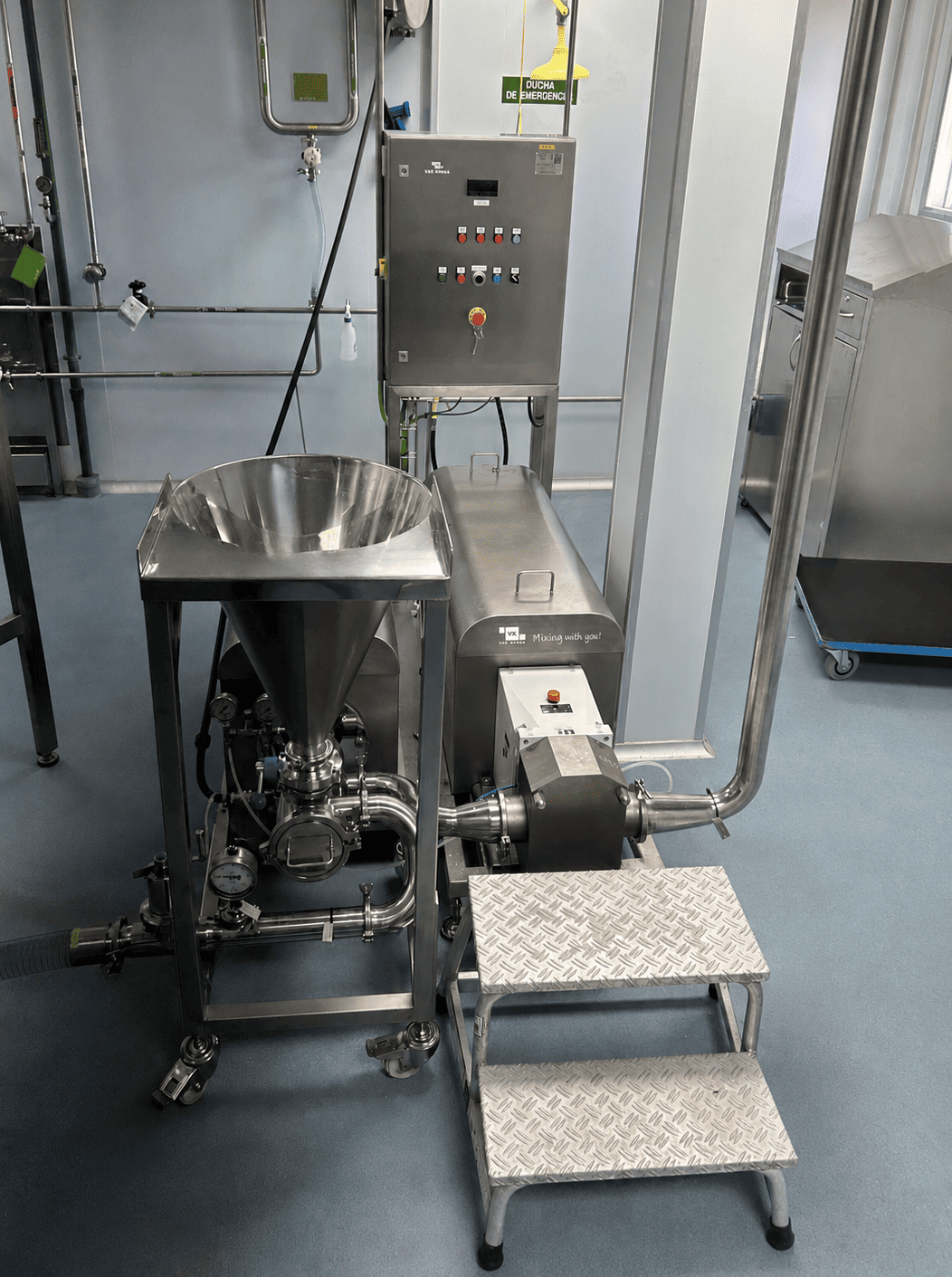

* ALVAK in-line mixing
When Is In-line Mixing the Best Option?
If your mixing process requires very long agitation times, very high power, involves significant mixing difficulty, or demands an extremely high-quality final product, choose a VK in-line mixing system.
With VAK KIMSA in-line mixers, you obtain excellent products: lump-free, with minimal air incorporation, very fine texture, and outstanding stability. You also achieve optimized processes: batch-size flexibility, tanks free from solids adhered to the walls, complete dissolution of hygroscopic solids, and continuous dilution processes.
Technical Advantages of VK In-line Mixing Solutions
Our VK in-line mixers are designed to deliver high efficiency. Thanks to their innovative technical features, we guarantee high-quality results and repeatable products.

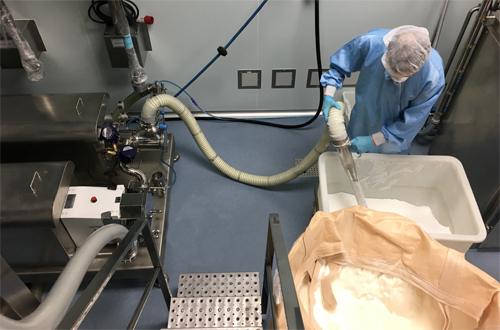

* VISCOVAK para la aspiración directa de sólidos desde sacos o bidones, sin necesidad de volcar el saco o bidón, con la ventaja principal de evitar la formación de nubes de polvo.
Construction Advantages of VK In-line Mixing
Thanks to their innovative and robust design, our mixers ensure faster, more efficient, and low-maintenance processes.
- High-efficiency design with 3 rotors and 2 stators.
- Operating principle based on turbulence generation and high shear, without friction.
- Wide rotor-stator clearance, resulting in less heating and easier cleaning.
- Horizontal layout that reduces the height of the solids loading point.
- Lower power requirement than a high-shear agitator.
Process Advantages
- No lumps are formed.
- Minimal air incorporation
- Flexible batch volume.
- One single mixer can be used to manufacture across several tanks.
- Components can be loaded at floor level.
- Tanks remain free from solids adhered to their walls.
- Complete dissolution of hygroscopic solids.
- Low-particle-size dispersions.
- Emulsions with small droplet size.

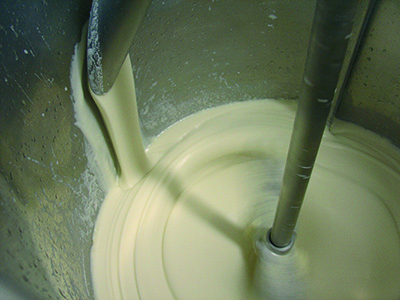

* Tanks remain free from solids adhered to their walls thanks to the direct incorporation of solids into the ALVAK and VISCOVAK in-line mixer head.

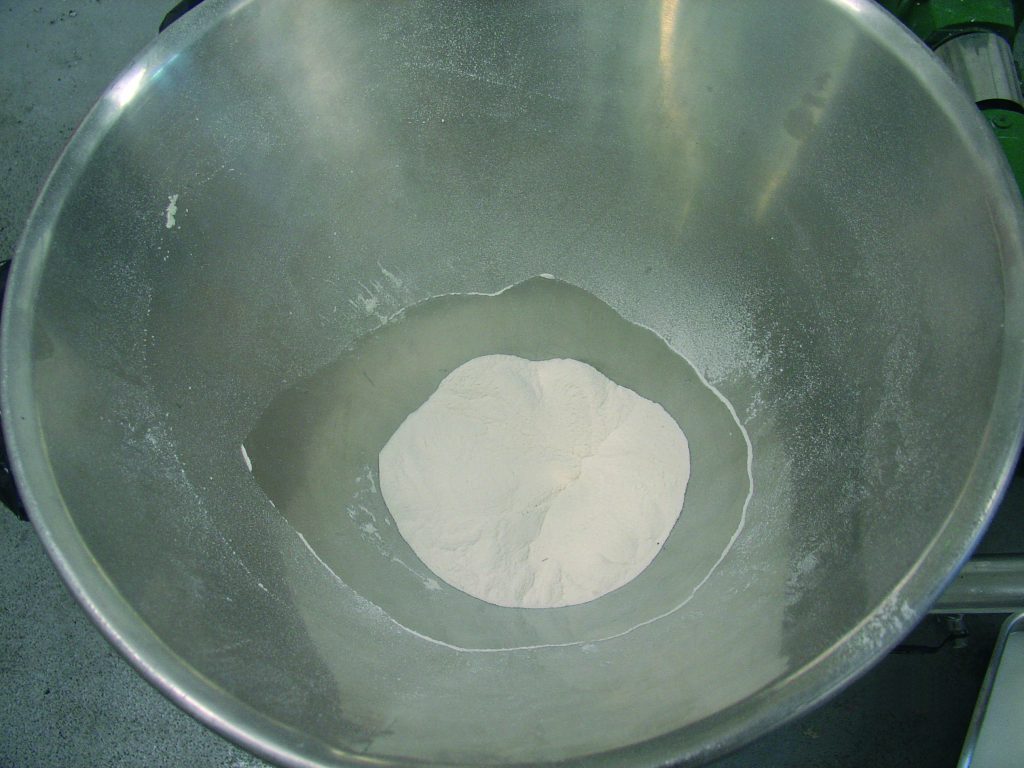

* Solids are incorporated into the ALVAK and VISCOVAK mixer hopper.

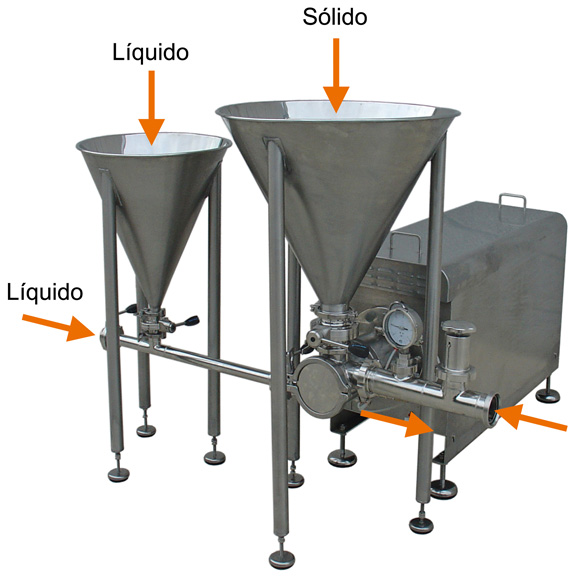

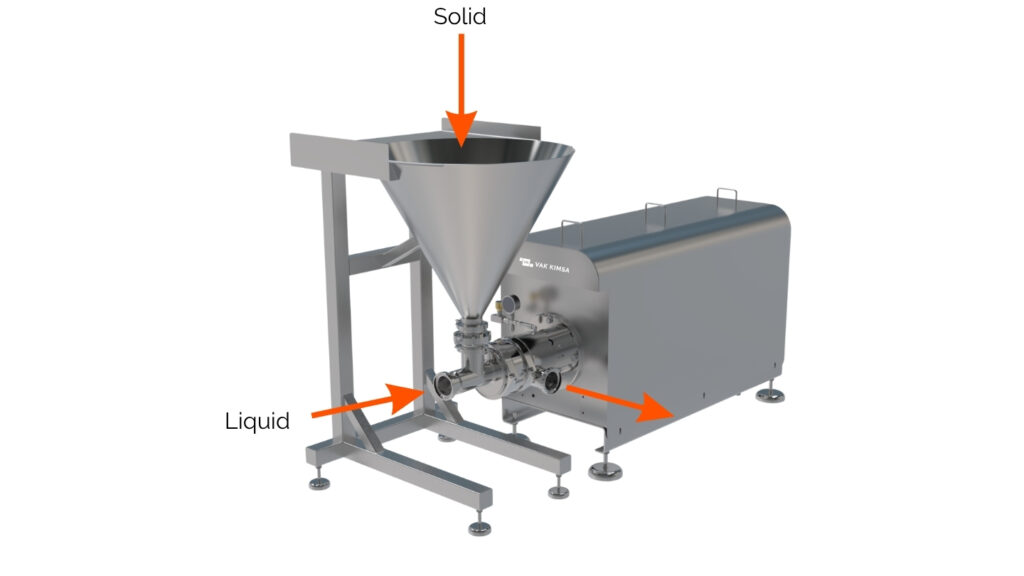

* Powdered solids are fed into the ALVAK in-line mixer hopper and mixed by recirculation through an external tank, forming a complete mixing installation.
Discover Our Range of In-line Mixers
VK in-line mixers provide fast and effective solutions for achieving homogeneous mixtures in batch or continuous processes.
Our innovative in-line mixing technology optimizes processes in your industry.
Our innovative in-line mixing technology optimizes processes in your industry.
VISCOVAK for the homogeneous mixing of thickening and texturizing solids such as xanthan gum, pectin, agar, carrageenan, carbomer, cellulose, etc. Food and cosmetics industry.
ALVAK for the mixing of excipients and active ingredients. Pharmaceutical industry.
Characteristics of In-line Mixers
In-line mixers for all processes and production requirements:
- Types: ALVAK, VISCOVAK, JETMIXVAK, and LIVAK.
- Dissolution or dispersion of powdered or crystalline solids in liquids.
- Emulsification, dilution, or mixing of liquids.
- Batch or continuous processes.
- Power: 0.55 to 75 kW.
- Solids addition up to 15,000 kg/h.
- Mixing flow rate up to 90,000 L/h.
- Industrial, sanitary, or aseptic versions.
- Design compliant with EHEDG and 3-A standards.
- Machinery Directive 2006/42/EC.
- ATEX Directive 2014/34/EU.
| Range of Application | ALVAK | VISCOVAK | JETMIXVAK | LIVAK | |
| Solid + Liquid | Solids directly to the mixion head | X | X | ||
| Solids to the tank | X | X | |||
| Gas + Liquid | X | X | |||
| Liquid + Liquid | X | ||||
| Concentration of Solids (%) | ≤ 80 | ≤ 80 | ≤ 80 | ≤ 80 | |
| Viscosity | Medium – Low | High | Medium -Low | High-Medium -Low | |
| Solid addition flow (kg/h) | ≤ 15.000 | ≤ 8.000 | |||
| Mixing flow (l/h) | ≤ 90.000 | ≤ 60.000 | ≤ 60.000 | ≤ 90.000 | |
VAK KIMSA Solid-Liquid In-line Mixers
We offer equipment for adding solids directly into the mixer head, as well as systems where solids are added to the tank.
- Solid-Liquid
Characteristics:
- Lump-free, with minimal air incorporation, and no solids adhered to the tank.
- Complete dissolution of hygroscopic solids.
- High flexibility: one single mixer for multiple tanks.
VAK KIMSA Liquid-Liquid In-line Mixing
- Liquid-Liquid
Characteristics:
- Con acabado industrial o sanitario
Gas-Liquid Mixers for Gas Dispersion
- Gas-Liquid
Characteristics:
- They continuously incorporate gas into a liquid stream
- They operate in pipelines or ducts during flow.
- They use static mixers, rotors or Venturi injectors.
