Shafts
Agitation and mixing processes with optimal systems, minimum energy consumption and customised solutions thanks to our extensive experience.
Mixing with optimal systems
Shafts custom-made and adapted to working conditions.
In the Process Engineering department, using our VAKCAL calculation software, the appropriate shaft diameter is sized according to the agitator’s working conditions.
Any agitator and shaft length can be manufactured without a lower guide.
- Tube shafts, solid bar or perforated bar.
- Diameters according to turret size and working conditions.
- Tube wall thickness according to length and presence of lower guide.
- Shaft couplings according to application.
| Coupling | Bearing box | Food | Chemistry | Cosmetics | Pharmacy and Biotechnology | |||
| Expanding Clamp | TD0 | HT | TK | X | X | X | X | |
| Screw | HT | TK | TK-TC | X | ||||
| Coupling plate | HT | TK-TC | X | X | X | X | ||

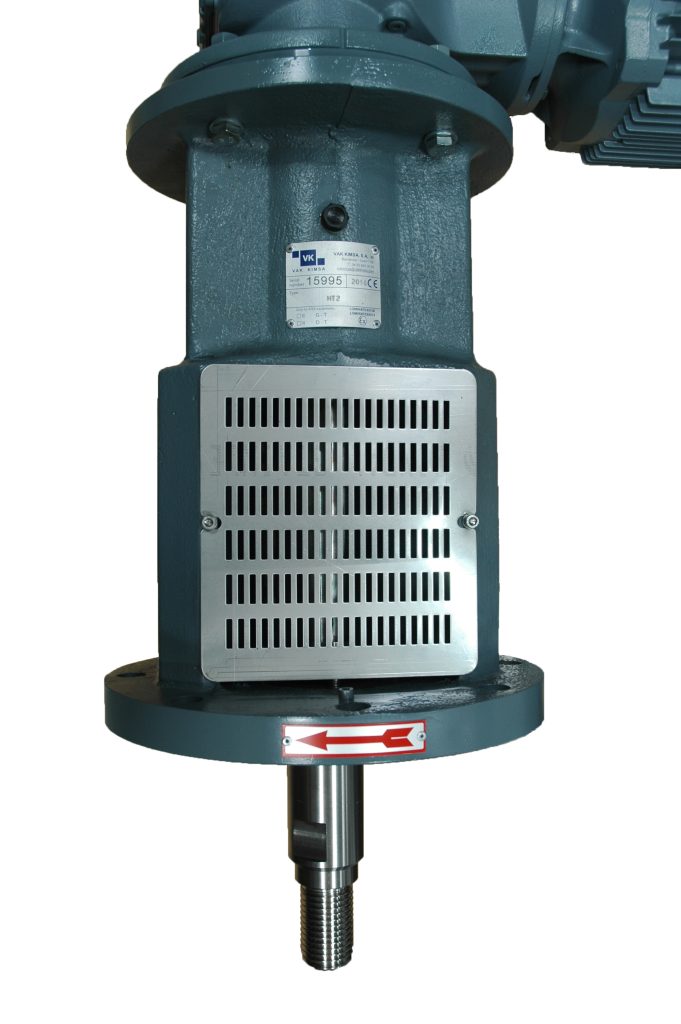

Screw

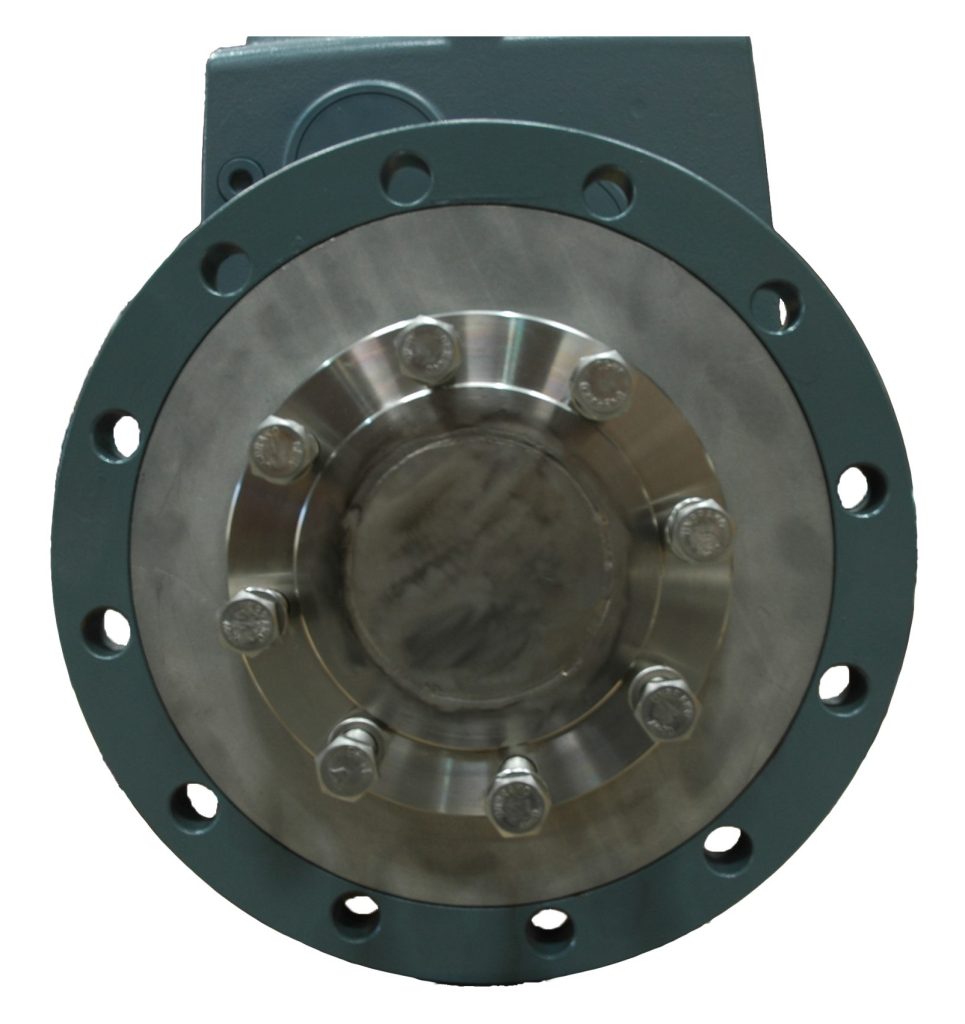

Coupling plate

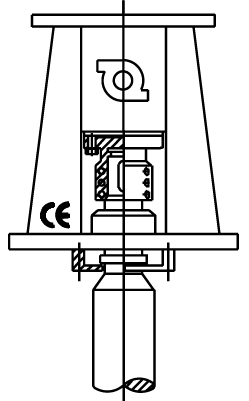

External tank coupling

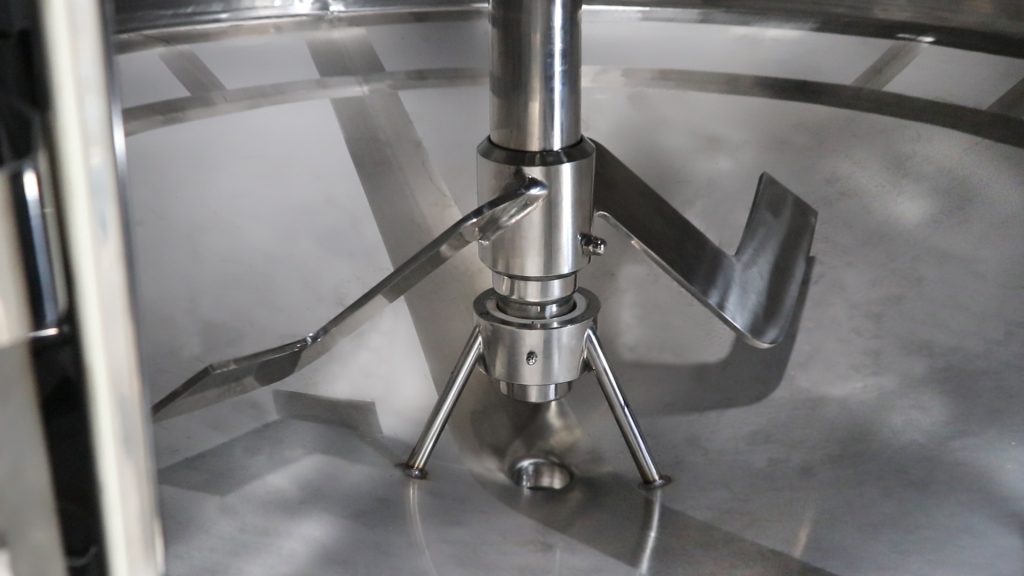

Lower guide
Only in the case of agitators with important torquing and when sanitary conditions so permit, shafts have a tripod attached (included with the agitator), that must be fixed to the bottom of the tank.
Our construction system, with a wide gap between the shaft and the PTFE bushing, allows for proper cleaning of the guide.
